2835 SMD LED Light Guide Panel , Thickness 8mm / 10mm LGP Light Guide Panel

Place of Origin China
Brand Name LSD
Certification CE
Model Number LSD-LGP
Minimum Order Quantity 20 pcs
Price Negotiable
Packaging Details 1 piece per paper carton, 30 carton per pallet
Delivery Time 10~15 days normally
Payment Terms T/T
Supply Ability 2000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Aluminum, LED, Acrylic, PC Film LED Source 2835 Smd For Side Lit
Thickness 8 Mm Or 10 Mm Size 600mm, 1000mm, 1200 Mm Length (customized)
Work Voltage DC12V Length 600mm, 1200mm
Light Color White, 6500K Frame Color Silver
High Light

2835 SMD LED Light Guide Panel

,

Thickness 8mm LGP Light Guide Panel

,

Thickness 10mm LGP Light Guide Panel

Leave a Message
Product Description

LED light guide panel, light guide panel,LGP



The Mitsubishi PMMA light guide plate(LGP)is a transmission medium of light, it takes the brand-new optical grade pmma as base material,adopts the most advanced 3D laser processing and engraving processing technology, LGP is a kind of high- tech product that takes advantage of light effect such as refraction,reflection and diffuse reflection ,formed by side light source between lines dots and turns spots light source or line light source into plane light source.
Our light guide products have the following advantages
1. No printing ink and environmentally friendly.
2. High Luminous efficiency,80%~85%,composed by high quality reflective film and imported optical acrylic with high transmittance over 93%
3. Lighting uniformity can be 90% or above . Dot matrix is designed acordingly.
4. Durable , no fade and long life span( more than 8 years if normally used indoors).
5. Free from water and moisture,cold resistance and high temperature resistant, more suitablefor exporting to the countries and regions with bad climate conditions.
6. Mass producing, short delivery time . With imported laser dotting machine,daily output is 3-5 times more than others.
7. Superior stability.Good raw material (Mitsubishi sheet),carefully saved files, excellent equipment.
8.Product size can be customized, you can customize a variety of special-shaped


Specification

Product type LED Light Guide Panel
Material MMA imported from Mitsubishi
Density 1.2g/cm3
Standard size

300*300mm, 600*600mm, 1220*1830mm(4*6ft), 1220*2440mm(4*8ft),

24"*36", any customized sizes

Thickness 2mm ,3mm, 4mm, 6mm,8mm
Color clear+laser dotted/clear+3d v-cutting/clear+tiny stripes
Packing covered with PE film, and using cartons or wooden pallet (case)for delivery
Certificate SGS,ISO9001,CE
MOQ 1pcs(negotiable when we have in stock)
Payment T/T, L/C, Western Union, Paypal
Delivery 7days



Acrylic Technical Parameters

Property Property

ASTM Typical Value 3

Method mm (Thickness)

Mechanical Property Specific Gravity D792 1.19
Optical Property Tensile Strength D638 700 kg/cm2
Flexural Strength D790 1170 kg/cm2
Modulus of Elasticity 28000-35000 kg/cm2
Compressive Strength D695 1200 kg/cm2
Rockwell Hardness D785 M-100
Refractive Index D542 1.49
Light Transmission,Total D1003 93%
Thermal Property Forming Temperature Approx 150-180℃
Deflection Temperature D648 95℃
Vicat Softening Point D1525 120℃ (223℉)

Coefficient of Linear Thermal

Expansion (-18℃ To 38℃ Ave)

D696 5×10-5 cm/cm/℃
Coefficient of Thermal Conductivity Cenco-Fitch 6×10-5 cm/cm/℃
Selflgnition Temperature D1929 443℃
Specific Heat 0.35 (BTU/1b℉)
Electrical Property Volume Resistivity D257 1016ohm-cm
Surface Resistivity D257 1015ohm-cm
Water Absorption D570 0.3

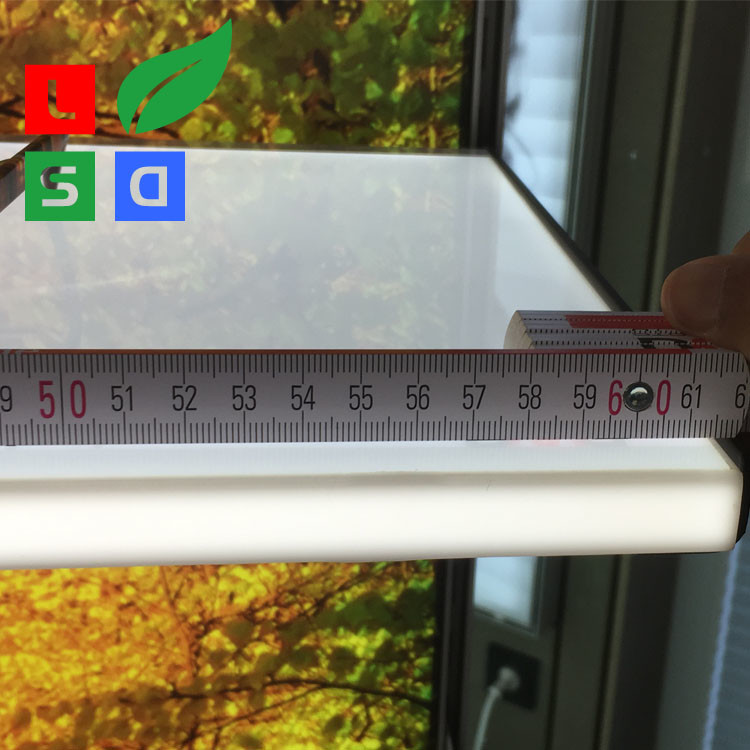

2835 SMD LED Light Guide Panel , Thickness 8mm / 10mm LGP Light Guide Panel 0

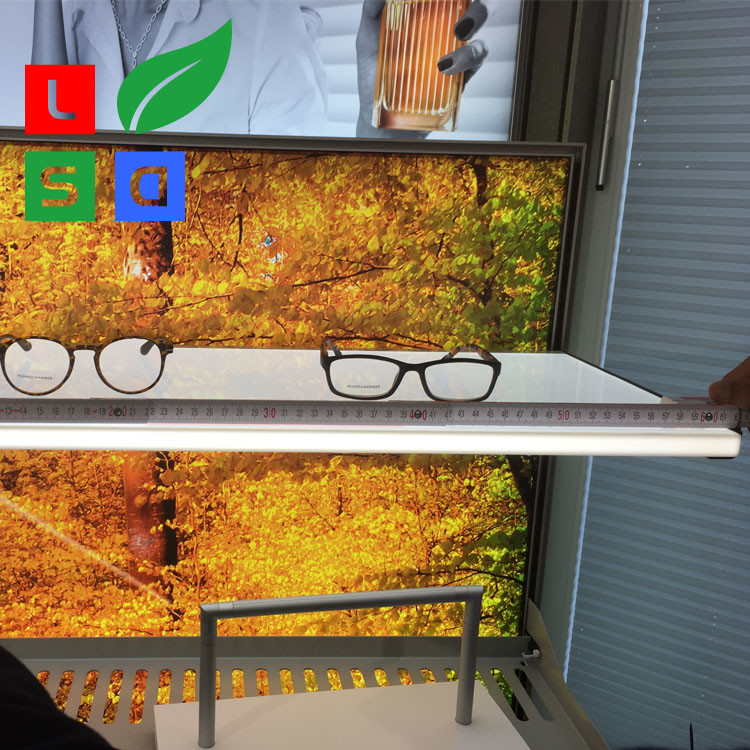

2835 SMD LED Light Guide Panel , Thickness 8mm / 10mm LGP Light Guide Panel 1
