Suspension Type 9.5mm LED Light Guide Plate 6500K Acrylic LED Shelf Lighting

  • Suspension Type 9.5mm LED Light Guide Plate 6500K Acrylic LED Shelf Lighting
  • Suspension Type 9.5mm LED Light Guide Plate 6500K Acrylic LED Shelf Lighting
  • Suspension Type 9.5mm LED Light Guide Plate 6500K Acrylic LED Shelf Lighting
  • Suspension Type 9.5mm LED Light Guide Plate 6500K Acrylic LED Shelf Lighting
Place of Origin China
Brand Name LSD
Certification CE
Model Number LSD-LSB
Minimum Order Quantity 50 pcs
Price Negotiable
Packaging Details 1 piece per paper carton, 50 cartons per pallet
Delivery Time 10~15 days
Payment Terms 30% deposit and rest balance anti viewing pictures
Supply Ability 1,000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material LED, Acrylic, Aluminum, Diffuser Panel LED Source 2835 SMD
Thickness 9.5mm Size 14" X 14" (customized)
Work Voltage 12V Light Color White, 6500K
Frame Color Silver Input AC 80-240V
High Light

9.5mm LED Light Guide Plate

,

9.5mm LED Shelf Lighting

,

LED Light Guide Plate 6500K
Leave a Message
Product Description

Suspension LED Shelf Light System With Steel Power Wire For Eyewear , Shoes , Jewelry Display



Specification:

Item NO. Item Name Frame size of led sign The thickness Thickness of LGP Cover sheet Power consumption Illuminance (LUX)
LS1414S Single Side LED Lite Shelf 14” x 14" 0.35" 3 mm 100% pure acrylic 1.5 mm milky white diffusion panel 4.5 W 2500lux±300
LS1424S Single Side LED Lite Shelf 14” x 24" 8.1 W 2000lux±300
LS1436S Single Side LED Lite Shelf 14” x 36" 12 W 2000lux±300
LS1414D Double Side LED Lite Shelf 14” x 14" 0.35" 3 mm 100% pure acrylic 1.5 mm milky white diffusion panel 4.5 W 2200lux±300
LS1424D Double Side LED Lite Shelf 14” x 24" 8.1 W 1800lux±300
LS1436D Double Side LED Lite Shelf 14” x 36" 12 W 1800lux±300

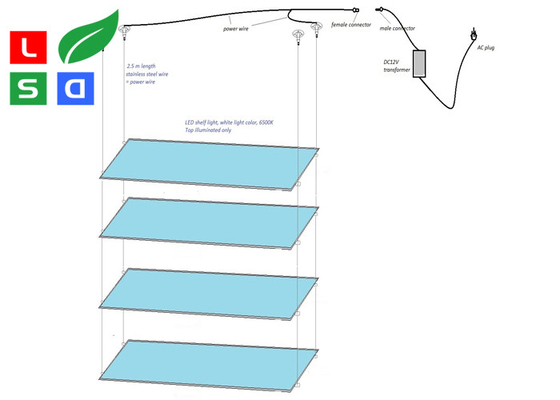

Customized size is available. The new developed LED shelf light system is by using aluminum slot surround, 3 mm acrylic sheet with silk screen dots printed, as light guide plate. 1 side or 2 sides LED edge lighting, by commended to your request size. Diffuser panel on the top, creat best homogenous brightness view. With customized power cable solution, several LED shelves could share one adapter. To give best attractive in the front of your store!

Suspension Type 9.5mm LED Light Guide Plate 6500K Acrylic LED Shelf Lighting 0



Features:



1. Ultra slim 8mm or 10 mm

2. Brightness to your products from below

3. Frameless view

4. Eco-friendly

5. Low power consumption

6. Long life span time, over than 50,000 hours

Suspension Type 9.5mm LED Light Guide Plate 6500K Acrylic LED Shelf Lighting 1Suspension Type 9.5mm LED Light Guide Plate 6500K Acrylic LED Shelf Lighting 2



Application:



For eyewear shop front , shoes shop , jewelry shop , watch shop, ceramic store , museum, electronic shop etc.

Suspension Type 9.5mm LED Light Guide Plate 6500K Acrylic LED Shelf Lighting 3
