Black Powder Coating a0 a1 LED Outdoor Light Box 50mm Width Low Power Consumption

Basic Information
Place of Origin: China
Brand Name: LSD
Certification: CE
Model Number: LSD-ODA
Minimum Order Quantity: 5 pcs
Price: Negotiable
Packaging Details: 1 piece per paper carton, 25 cartons per pallet
Delivery Time: 15 days normally
Payment Terms: 30% T/T
Supply Ability: 500 pcs per month
Detail Information
Material: Aluminum, LED, Acrylic, PC Film Depth: 45 Mm
IP Rate: IP65 LED Source: 2835 Smd For Edge Lit
Work Voltage: DC12V Frame Color: Black Powder Coating
Frame Width: 50mm Input: AC 80~245V
High Light:

LED Outdoor Light Box 50mm

,

a1 led lightbox 50mm

,

a0 led lightbox 50mm


Product Description

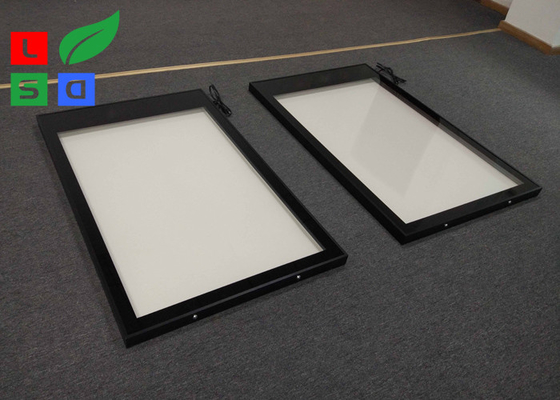

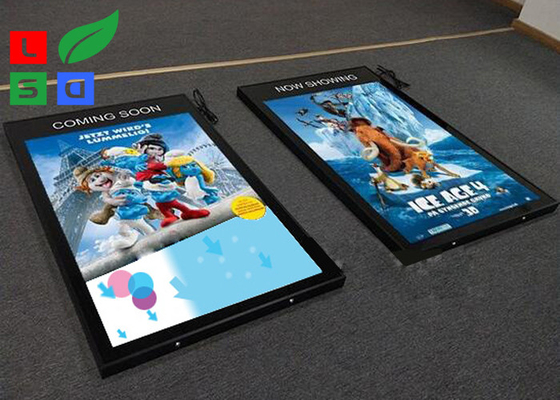

Door Open Single Sided LED Outdoor Light Box For Movie Poster Display



Specification:



1) Model No.: LSD-ODA
2) Materials: aluminium, LED, LGP etc.
3) Poster size: A0, A1, A2, A3, B0, B1, B2 (customized size is available.)
4) LED source: 2835 SMD on 2 length sides
5) Power supply approvable: IP67, DC12V, input voltage 80V~245V
6) Usage: outdoor advertising (waterproof)
7) Thickness: 45 mm
8) HS Code: 94056000



Model No. Frame Size (mm) Graphic Size (mm) Visible Size (mm) Thickness (mm) Power(W) Weight(kg) Pack Size (L/W/H:mm)
N.W G.W.
LSD-ODA-B1 791 x 1085 B1 (706 x 1000) 691 x 985 45mm 28.8 7 9.3 871x1165x100
LSD-ODA-A2 505 x 679 A2 (420 x 594) 405 x 579 45mm 14.4 9.2 13 585x760x100
LSD-ODA-A1 679 x 926 A1 (594 x 841) 579 x 826 45mm 21.6 13.5 20.37 760x1006x100
LSD-ODA-A0 926 x 1274 A0 (841 x 1189) 826 x 1174 45mm 34.56 23.4 32.5

1006x1360x100



Black Powder Coating a0 a1 LED Outdoor Light Box 50mm Width Low Power Consumption 0

Features:


Ultra slim
Easy installed,hang on the wall or pole etc.
Only need swing-open the frame for easy to change your graphics
LED as light source,low power consumption and saving energy
Uniform lighting without light spot or dark space.
Water proof,with the enclosed lockable frame for withstand any atrocious weather.

Black Powder Coating a0 a1 LED Outdoor Light Box 50mm Width Low Power Consumption 1

Application:



Cinema movie poster display, cartoon paint display, art poster display, supermarket, shopping mall, lamp pole display, bus stop advertising display etc.
