Electric Store LED Textile Light Box , Light Guide Plate Fabric Light Box Frame
| Place of Origin | Xiamen, China |
|---|---|
| Brand Name | LSD |
| Certification | CE |
| Model Number | LSD-FLB30 |
| Minimum Order Quantity | 1 pc |
| Price | Negotiable |
| Packaging Details | 1 piece per paper carton, 30 pcs per crate |
| Delivery Time | 10~15 days normally |
| Payment Terms | 30% T/T |
| Supply Ability | 1000 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Aluminum, LED, UV Fabric | Depth | 30 Mm |
|---|---|---|---|
| LED Source | 2835 SMD For 2 Sides | Work Voltage | DC 12V / 24V |
| Color Temperature | 3000 ~ 9000K As Option | Mounting | For Wall Mounting |
| High Light | led frameless fabric light box,led slim light box,Electric Store LED Textile Light Box |
||
Product Description

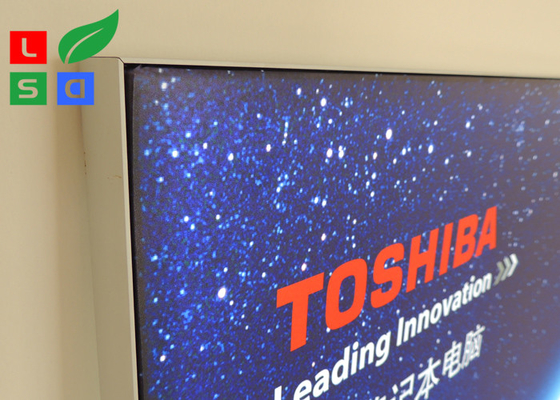

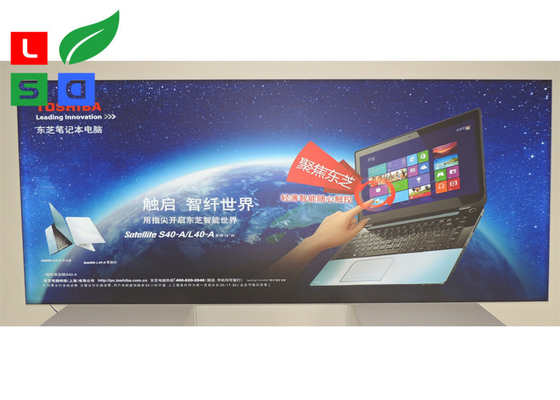

Slim LED Fabric Light Box With Light Guide Plate Backlit For Electric Store Display
LED SEG Frame is one of our most hot sale product, which is an innovative item. Compare to traditional fabric light box, this is by using Light Guide Plate with LED on the edges, creat a homogenous brightness to the fabric print. DC12V safe power as work voltage, with 1.5 female cable on each light box, and CE, SAA, UL, RCM certificated power adapter included.
We offer high quality UV printed fabric, with resin strip sewing surround, for inserting into the aluminum slot. 30mm thickess aluminum profile, with anodized silver color finish. Color powder coated color finish is available.
Specification:
| Model | Fame Size (mm) | Fabric Size (mm) | Visual Size (mm) | Thickness | Light Source | Power | Package (CM) |
| LSD-FB30-A2 | 420x594 | 430x614 | 420x594 | 30mm | 2835SMD LED for two length sides | 20.8W | 1pc/box, box size: 490x720x100mm gross weight: 7.1kg |
| LSD-FB30-A1 | 594x841 | 604x861 | 594x841 | 30mm | 2835SMD LED for two length side | 29.6W | 1pc/box, box size: 670x960x100mm gross weight: 12.9kg |
| LSD-FB30-A0 | 841x1189 | 851x1209 | 841x1189 | 30mm | 2835SMD LED for two length sides | 41.6W | 1pc/box, box size: 910x1310x100mm gross weight: 23.9kg |
Features:
1. Ultra thin, frameless
2. Low power consumption
3. Homogenous brightness

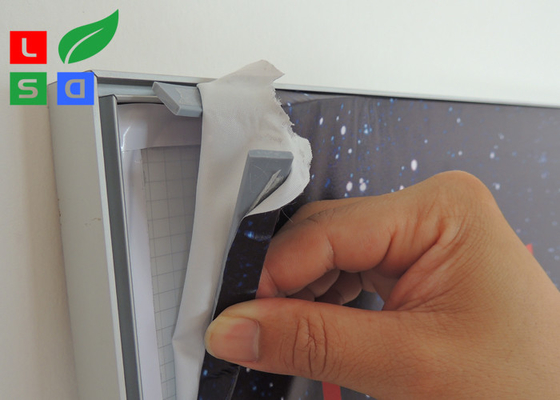

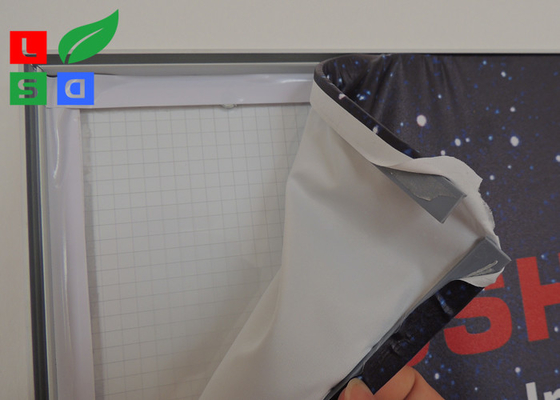

4. Easy to change fabric print by hand, free tool installation
To get a best quotation, please offer:
1. Frame size ?
2. Reuqest quantity ?
3. Delivery address ?
Application:
Electric store display, cloth shop display, watch shop display, jewelry store display, shoe store display, eyewear shop display, shopping mall, metro,hospital, rail train station, public bus stop, restaurant advertisig, hotel light box etc.
