| Place of Origin: | China |
|---|---|
| Brand Name: | LSD |
| Certification: | CE |
| Model Number: | LSD-OD45 |
| Minimum Order Quantity: | 1 pc |
| Price: | Negotiable |
| Packaging Details: | 1 piece per paper carton, 20 carton per pallet |
| Delivery Time: | 10~15 days normally |
| Payment Terms: | 30% T/T |
| Supply Ability: | 500 pcs per month |
| Material: | Aluminum, LED, Acrylic, PC Film | Depth: | 45 Mm |
|---|---|---|---|
| IP Rate: | IP55 | LED Source: | 2835 Smd For 2 Length Sides |
| Work Voltage: | DC12V | Frame Color: | Anodized Silver |
| High Light: | IP55 LED Outdoor Light Box,Anodized silver LED Outdoor Light Box,IP55 outdoor led sign box |
||

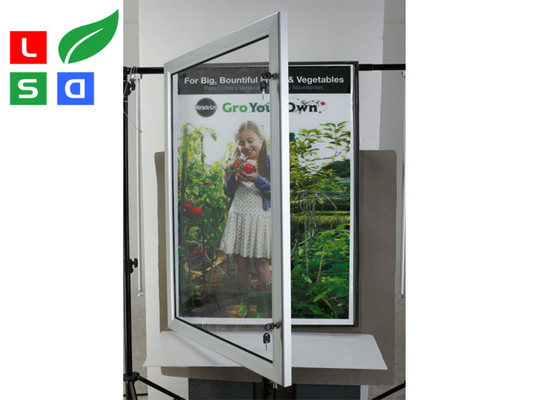

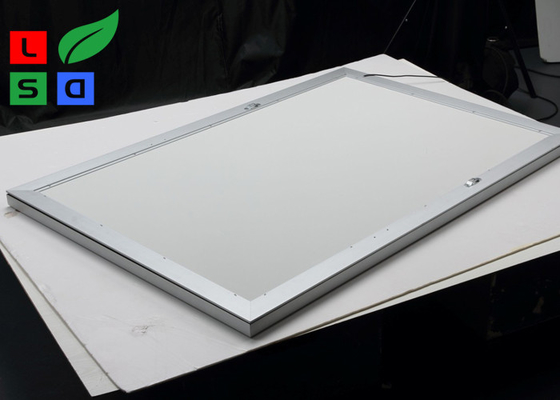

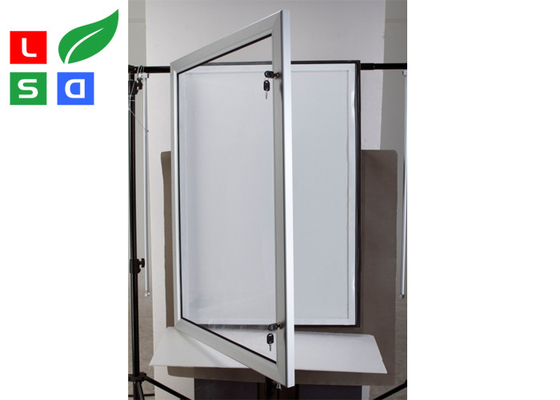

Swing Open Lockable LED Outdoor Light Box With IP67 Power Adapter For Exterior Decoration Sign
Specification:
1) Model: LSD-OD45
2) Materials: aluminium, LED, LGP etc.
3) Poster size: A0, A1, A2, B0, B1, B2 (customized size is available.)
4) LED source: High brightness 2835 SMD
5) Power supply approvable: DC12V, input voltage 100V~240V
6) Usage: outdoor advertising (waterproof)
7) Thickness: 45 mm
8) HS Code: 94056000
| Model No. | Frame size (mm) | Graphic Size (mm) | Visible size (mm) | Thickness (mm) | Power(W) | Weight(kg) | Pack size (L/W/H:mm) | |
| N.W | G.W. | |||||||
| LSD-ODA-B1 | 811 x 1105 | B1 (706 x 1000) | 691 x 985 | 45mm | 28.8 | 7 | 9.3 | 871x1165x110 |
| LSD-ODA-A2 | 525 x 699 | A2 (420 x 594) | 405 x 579 | 45mm | 14.4 | 9.2 | 13 | 585x760x110 |
| LSD-ODA-A1 | 699 x 946 | A1 (594 x 841) | 579 x 826 | 45mm | 21.6 | 13.5 | 20.37 | 760x1006x110 |
| LSD-ODA-A0 | 946 x 1294 | A0 (841 x 1189) | 826 x 1174 | 45mm | 34.56 | 23.4 | 32.5 |
1006x1360x110 |
Features:
Ultra slim, 45mm
Easy installed, hang on the wall or pole etc.
Only need swing-open the frame for easy to change your graphics
LED as light source, low power consumption and saving energy
Uniform lighting without light spot or dark space.
Waterproof,with the enclosed lockable frame for withstand any atrocious weather.
Application:
Shopping mall outside sign, train station outdoor poster frame, building outdoor decoration sign, bus stop poster sign, fitness outside advertising sign, club poster display etc.
