Super Thin 20mm Width LED Poster Frame wall mounted light box Customizable

Place of Origin Xiamen
Brand Name LSD
Certification CE
Model Number LSD-SNS2017
Minimum Order Quantity 10 pcs
Price Negotiable
Packaging Details 1 piece per paper carton, 30 carton per pallet
Delivery Time 10~15 days normally
Payment Terms T/T
Supply Ability 1000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material Aluminum, LED, Acrylic Front Width 20 Mm
Thickness 17 Mm LED Source 2835 Smd For 2 Length Sides
Standard Size A2, A3, A4 Work Voltage DC12V
LGP 5 Mm Silk Screen Dots Printed LGP Input AC 100~240V
High Light

20mm LED Poster Frame


20mm Wall Mounted Light Box C


LED Poster Frame Customizable

Leave a Message
Product Description

20mm Width Super Thin Single Sided LED Snap Frame Sign Board For Wall Poster Display




1) Model: LSD-SNS2017
2) Materials: aluminum, LED, LGP etc.
3) Poster Size: A2, A3, A4 (customized size is available.)
4) LED Source: High brightness 2835 SMD
5) Power supply approvable: DC 12V
6) Usage: indoor advertising
7) Thickness: 17 mm
8) HS Code: 94056000

9) For wall mounting


Model No. Frame Size (mm) Graphic Size (mm) Visible Size (mm) Weight (net/gross) LED QTY (pcs) Power Package (mm)
LSD-SNS2017-A3 317 x 440 A3 (297 x 420) 277 x 400 4kgs/4.5kgs 48 12w 377*520*70
LSD-SNS2017-A2 440 x 614 A2 (420 x 594) 400 x 574 5.2kgs/6.4kgs 65 16w 500*700*70
LSD-SNS2017-A1 614 x 861 A1 (594 x 841) 574 x 821 8.7kgs/9.6kgs 96 23w 674*950*70
LSD-SNS2017-A0 861 x 1209 A0 (841 x 1189) 821 x 1169 11.8kgs/15.8kgs 130 33w 927*1300*70




Ultra thin, smart frame
Easily changing poster, just need lift up the four sides of frame.
Easy to install by wall screwing.
LED illuminated, save energy over 50% compared to traditional one.
Low heat, low flickering,comfortable for eyes.


To get a best price, please offer:


1. Frame size or poster size ?

2. Request quantity ?

3. Frame color ?




Widely use for supermarket, retail stores, restaurant menu, cinema poster frame display, bank poster display, hospital, metro station display etc.

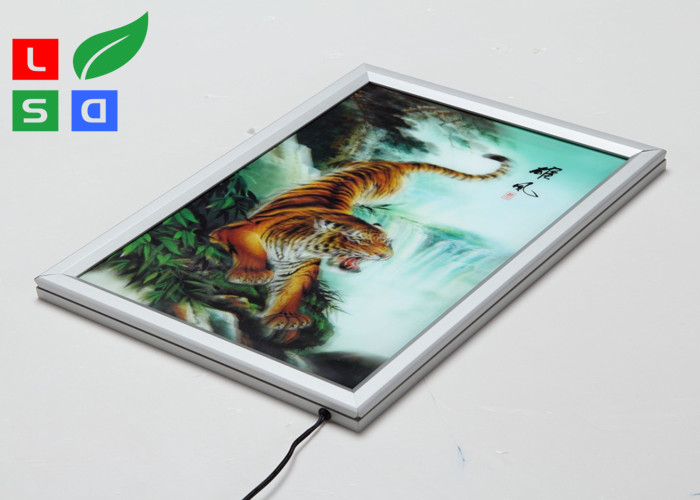

Super Thin 20mm Width LED Poster Frame wall mounted light box Customizable 0

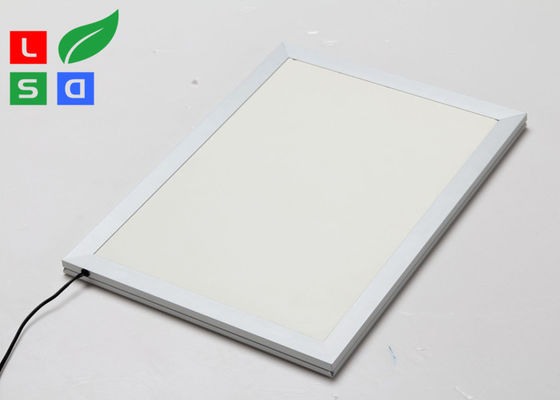

Super Thin 20mm Width LED Poster Frame wall mounted light box Customizable 1
