| Place of Origin: | China |
|---|---|
| Brand Name: | LSD |
| Certification: | CE, RoHS |
| Model Number: | LSD-VB7IN |
| Minimum Order Quantity: | 20 pcs |
| Price: | Negotiable |
| Packaging Details: | 1 piece per paper carton, 300 cartons per pallet |
| Delivery Time: | 15 days normally |
| Payment Terms: | 30% T/T |
| Supply Ability: | 8,000 pcs per month |
| Screen Size: | 7 Inch | Resolution: | 800 X 480 |
|---|---|---|---|
| Brightness: | 250 Cd/m2 | Memory: | 128M As Default |
| Function: | For Video Display | Battery: | 3.7V 1000mA Lithium Battery |
| Last Time: | 1.5~2.0 Hours When Always On | Accessories: | USB Cable, Foam |
| High Light: | LCD Video Greeting Card 128M,lcd screen greeting card 128M |
||

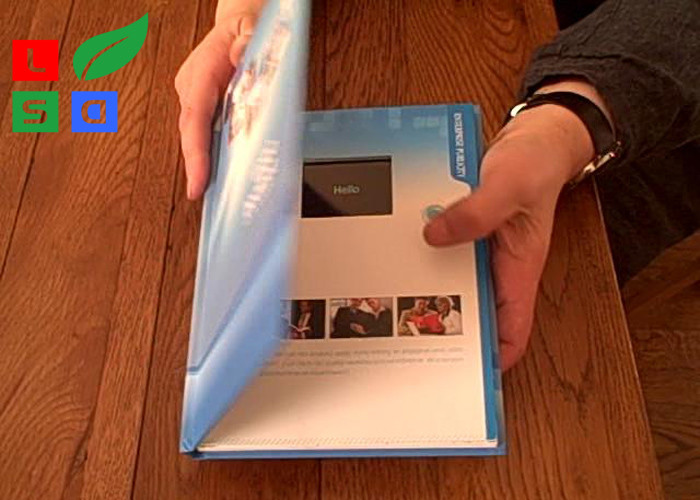

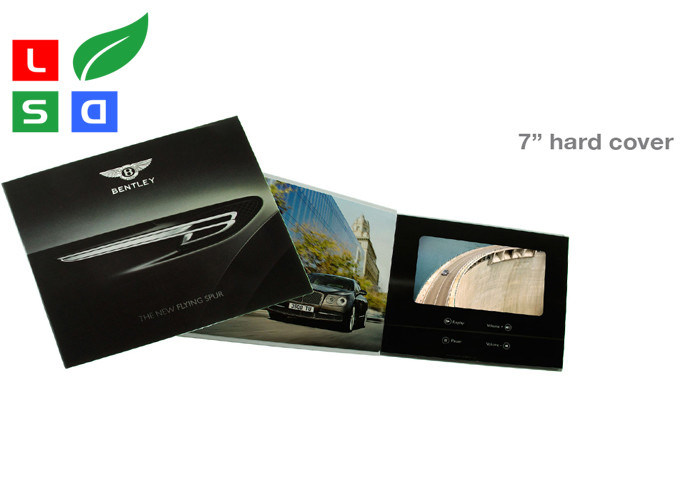

7 Inch , 10 Inch Rechargable LCD Video Greeting Cards, Video Promotion Book, LCD Screen Cards
LCD Video Screen Card is high popular for high grade promotion gift signs in 4S auto shop or as promotion gift for jewelry, watch, diamonds etc goods. We can offer one stop service by according to your requests. Before contacting with our sales team, please read product specification below.
Specification:
| LCD Screen Card | |
| Memory | 128MB, 256MB, 512BM, 1GB, 2GB, 4GB, 8GB, 16GB, 32GB |
| Battery | Lithium 320mA~1500mA, standard equipped for 2.4inch video greeting card is 320mA, 4.3inch,5inch and 7inch video greeting card is 1000mA, 10inch video greeting card is 1500mA |
| Display | 2.4inch, 4.3inch, 5inch, 7inch, 10inch |
| Switch | Magnet swicth, on/off switch, light sensor, motion sensor,etc. |
| Function | Video playing,image viewing, Rolling captions while palying music or images, music playing while viewing images |
| Video format | RMVB,AVI,MKV,WMV,VOB,MOV,FLV,ASF,DAT,MP4,3GP,MPG,MPEG |
| Music format | MP3, WMA, DRM WMA, OGG, APE, FLAC, WAV, AAC |
| Text format | TXT |
| Picture format | JPEG, BMP, GIF, tif, png |
| System support | Win98/ME/NT/2000/XP/WIN 7, etc. |
| Picture resolution | 4.3inch and 5inch is 480*272, 7inch is 800*480, 10inch is 1024*600 |
| Paper card | A4 , A5 and customized size, 300g soft cover or hardcover, 4C printing, glossy or matt lamination |
| Boot time | 2 seconds |
| Video switch time | 1 second |
| New features | |
| 1, Support Wide Color Digital TFT LCD display. | |
| 2, Support all format HD video playback, 1280 * 720 streaming video without conversion,H. 264 HP high bit rate smooth decoding | |
| 3, Support image,music and txt view together | |
| 4, Support maximum 10 buttons, the button function could be: AV1~AV9 (one button must be power on/off), play/pause,prev,next,volume up,volume down,forward,rewind,power on/off, etc. Free combination. | |
| 5, Support TF card and SD card (128M~32G) | |
| 6, Support micro USB,it could charging when connect PC. | |
| 7, Support more than 5V/1A adaptor | |
| 8, Support single speaker or stereo earphone | |
Features:
1. Industrial-grade design, heavy-duty built for non-stop loop-playing 24-7-365.
2. Automatically upload contents to player by simply inserting an USB drive.
3. Start playing automatically when open the brochure
OEM/ODM Options:
Option 1: LCD Screen Size
2.4", 2.8", 4.3", 7"
Option 2: Brochure Size
A4, A5 or other
Option 3: Buttons
5 (default) , 6 , 7 , 8 buttons
Option 4: Touch Screen
4.3" touch screen, 7" touch screen
Option 5: Li-rechargeable Battery
300mAh , 500mAh, 1200mAh
Option 6: Memory
128MB (default), 256MB, 512MB, 1GB, 2GB, 4GB
FAQ:
Q. What's the button design for LCD video brochure for advertisement ?
It can be customized according to the functional requirements of the product. such as: pause/play, previous, next, fast forward, rewind, volume +, volume - ,video&image switch,on/off buttons or AV1 - AV9 button corresponds to 9 different videos. The above functions can be combined freely.
Q. What's the function of USB port?
Micro USB, it could charge the battery and connect laptop or computer to upload video file.
Q. Does it support TXT format?What's the supported video format?
Yes,when playing images,audio file or txt will be loaded and play automatically
Q. Can we use our own dsign?
Yes,we can send you template at your request
Q. What is the paper material and printing skill?
Standard paper is 300g artpaper with 4C printing. Other materials and printing skills are acceptable at your request. Such as 250g,350g,1250g hadcover etc. Embossing&Engraving,UV,hot stamping,spot color printing,double side printing,etc.
Applicaiton:
Watch shop, 4S auto store, wine shop, gift shop, jewelry shop, party, meeting, wedding etc.
