Warehouse Lighting High Bay LED Lights , 200 Watt Industrial High Bay Lights With Bracket

Basic Information
Place of Origin: China
Brand Name: LSD
Certification: CE, RoHS, UL
Model Number: LSD-CPL200
Minimum Order Quantity: 5 pcs
Price: Negotiable
Packaging Details: 1 pc per carton
Delivery Time: 15 days
Payment Terms: 50% T/T, rest balance before shipping out
Supply Ability: 500 units per month
Detail Information
Lamp Type: LED Light Color: Warm White, White, Cool White
Power: 200W CRI: 80
Lumen: 145lm/w Beam Angle: 60×60°, 90×90°, 142 X 65°
IP Rating: IP66 LED Driver: MeanWell Driver
LED Chip: 3030SMD LOR: 100%
High Light:

led shop lights

,

commercial electric led lights


Product Description

200W High Bay UL Certificated LED Commercial Lights With Braket For Warehouse Lighting



LED High Bay Light can be used for warehouse, factory, workshop , gas station etc, the fixture with unique design of radiator, energy saving, is better heat dissipation, enviromental protection, no UV,  Hg and harmful substance.

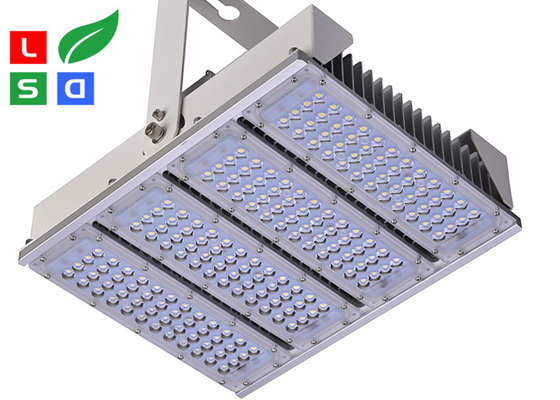

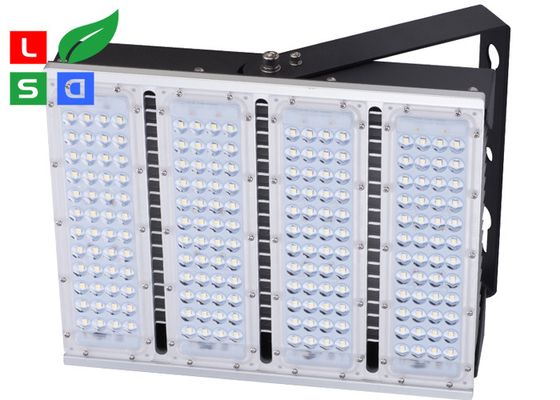

Warehouse Lighting High Bay LED Lights , 200 Watt Industrial High Bay Lights With Bracket 0Warehouse Lighting High Bay LED Lights , 200 Watt Industrial High Bay Lights With Bracket 1

Specification:

Model LSD-CPL50 LSD-CPL100 LSD-CPL150 LSD-CPL200
Power 50W 100W 150W 200W
LED Chips
CRI >70 >70 >70 >70
Liminous Flux 6750-7250lm 13500-14500lm 20500-21750lm 27000-29000lm
Driver Meanwell brand, AC100~277V  PF:>0.95
IP Rating IP66
Color Temp 6000~6500k / 4000~4500k / 2700~3200k
Beam Angles 60×60°,90×90°,144×62°
Fixture Painting White / Black
Working Temp -20 ~ +40°C
Warranty 5 years
Life Span > 50, 000 hours
Net Weight: 2.5kg 4.0kg 5.3kg 6.3kg

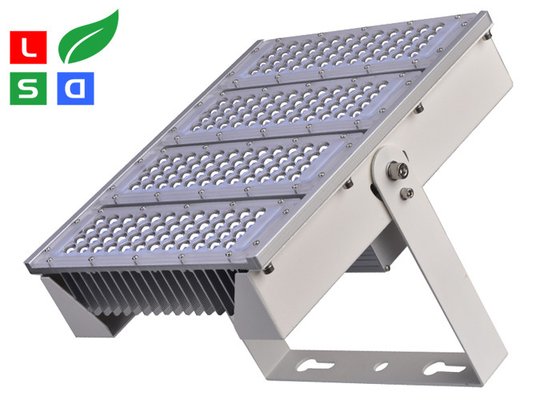

Warehouse Lighting High Bay LED Lights , 200 Watt Industrial High Bay Lights With Bracket 2



FEATURES:


Power: 50w , 120w, 150w, 200w, 250w optional.
Lumen: 145lm/w
Beam angle: 60×60°, 90×90°, 90˚,120°,132×78°,144×62°
LED chip: ,Bridgelux ,Cree ,Samsung optional
LED driver: Meanwell driver
5 Years Limited Warranty
IP66 waterproof
IES files available for all models
Flexible: rotatable bracket ,easy installation

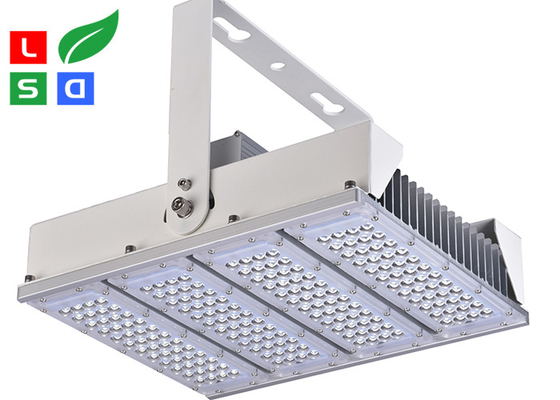

Warehouse Lighting High Bay LED Lights , 200 Watt Industrial High Bay Lights With Bracket 3Warehouse Lighting High Bay LED Lights , 200 Watt Industrial High Bay Lights With Bracket 4

Application:



Tunnel, Show Rooms, Factories, Buildings, Hall, Parking Lot, Hall, Supermarket, Stadium, Shopping Malls, Commercial Buildings, Football Field, Canopy, Toll Stations ect.
Warehouse Lighting High Bay LED Lights , 200 Watt Industrial High Bay Lights With Bracket 5
